Luxury Retail Shop (Year 2)

Brief: To study and analyze the site given (Raffles Exchange) and design a luxury concept store.

Definition of luxury: Materials or services that are not essential and significance to one needs.

Range of product sold in retail shop
The concept store is a luxurious store of imported refreshments with unique/limited edition packaging from overseas that cannot be found in Singapore. The store provides elegant, unique, healthy and tasty munchies for busy commuters. Each product not allows the shoppers to fill up their empty stomach, it also provide a different visual sensation for them.
Site Plan
The store is located along Route B near the entrance from the MRT station. This ensures high volume of traffic and high visibility for the store. The main target customers include young executives in their 20s and 30s as well as teenager and snack seeker who pass by the site. The store will be open from 8am to 10pm to cater for the employee customers who buys snacks for work as well as the after work crowd.
Concept box
Passing by the store, the protruded platform of the store will catch the attention of the shoppers. Upon entering the 120 sqm store, the shoppers vision will be guided by the continuous spirally linear floor to ceiling structure acute to the walls of the store which lead them further into the store. The structure constitutes of a cashier counter and display shelves for the product. Mirrors walls are also being situated at the foremost wall upon entering the store. This creates an illusion to the shoppers, making the store look more spacious. The ceiling of the store is extruded with conceal lights of the plan view of the shelves. The lighting of the store is dim to give a soft and smooth ambience.
Material Sample Board
The simple white scheme of the store creates cosy, clean and relaxing ambience. This also increases the focus attention of the product making them the main ‘actor’ of the store.
Concept Board



Construction and Detail Drawings

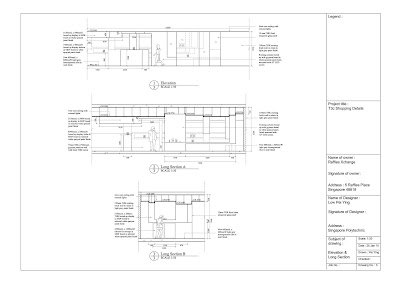

Layout PlanElevation and Long Section

Long Section

Long Section

Cross Section

Reflected Ceiling PlanDetail
